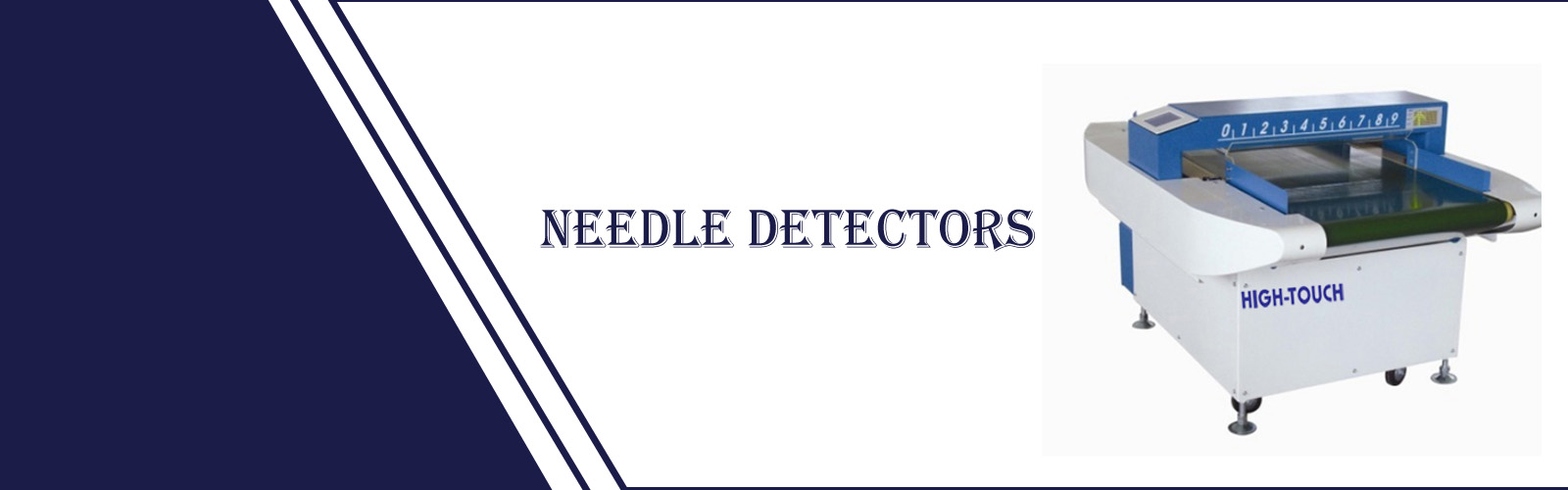

NEEDLE DETECTORS

Our company is considered as the most reliable and trustworthy entity manufacturing and exporting commendable assortment of Needle Detector in global market. These machines are massively used for detecting broken needles left in all kinds of clothes, home furnishing items and carpets. These detectors are available at market leading prices in the market. Our customers appreciate our assortment of detector for their compact design, excellent sensors and low consumption of power. Offered array of Needle Detector is manufactured using supreme quality of material and novel technology under the supervision of our experts.

Features:

  • Designed to detect broken needles left in all kinds of clothes, underclothing, home furnishing items, shoes, carpets, bathrugs and toys etc.
  • Counter on the control panel indicates certified, undertified and their gross
  • 10 LED indicators on the bridge to indicate the exact position of metal object in the item being checked
  • Sensor controlled conveyor belt automatically begins to move when the operator stands in front and switches "off" it left unattended
  • In the event of broken needle or metal part being detected the machine automatically "beeps" and the conveyor returns the items being checked to the operator.
Model
Detecting Method
HD -650
Magnetic Induction
HD - 680C(PC System)
Magnetic Induction
HD-630C-30
Magnetic Induction
HD-1200C
Magnetic Induction
Detecting Ability 1mm Steel Part 1mm Steel Part 1mm Steel Part 1mm Steel Part
Detecting Adjustment Stepless Adjustment Stepless Adjustment Stepless Adjustment Stepless Adjustment
Detecting Width 600mm 600mm 600mm 1200mm
Detecting Height 100mm 100mm 300mm 100mm
Alarm Method Buzzer & Belt Stops Buzzer & Belt Stops Buzzer & Belt Stops Buzzer & Belt Stops
Belt Speed 30m/min 30m/min 30m/min 30m/min
Power Supply 250v.50Hz, Single Phase 250v.50Hz, Single Phase 250v.50Hz, Single Phase 250v.50Hz, Single Phase
Rated Out Put 110w 110w 110w 160w
Diemnsion LxWxH 1650 x 1650 x 900mm 1050 x 1650 x 900mm 1650 x 1050 x 1100mm 1650 x 1650 x 900mm
Weight 190Kg Approx 220Kg Approx 230Kg Approx 350Kg Approx
